SIEMENS 6AV2123-2GB03-0AX0

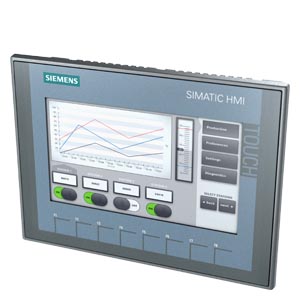

The SIEMENS 6AV2123-2GB03-0AX0 is a robust and versatile SIMATIC HMI KTP700 Basic Panel designed for efficient and cost-effective machine-level visualization tasks. This Basic Panel features key/touch operation, a 7-inch TFT display with 65,536 colors, and a PROFINET interface, making it an ideal solution for a wide range of industrial applications.

Key Features of SIEMENS 6AV2123-2GB03-0AX0

1. 7-inch TFT Display:
   • The SIEMENS 6AV2123-2GB03-0AX0 features a 7-inch TFT display with a resolution of 800 x 480 pixels. The high-resolution screen displays 64,000 colors, providing clear and vibrant visuals for effective process monitoring and control.
2. Key/Touch Operation:
   • This Basic Panel supports both key and touch operation, offering flexible and intuitive user interaction. The touch functionality enhances ease of use, while the key operation provides reliable control even in challenging environments.
3. PROFINET Interface:
   • Equipped with a PROFINET interface, the SIEMENS 6AV2123-2GB03-0AX0 ensures seamless connectivity with various PLCs and industrial systems, enabling efficient communication and integration.
4. IP65 Protection:
   • The panel boasts an IP65 protection rating on the front, making it suitable for use in harsh environments. This high level of protection ensures durability and reliability in demanding industrial conditions.
5. USB Interface:
   • The USB interface allows for the connection of peripheral devices such as keyboards, mice, or barcode scanners. It also facilitates easy data transfer, enhancing the panel’s functionality and versatility.
6. Energy-Efficient Display:
   • The high-contrast screens are 100% dimmable, allowing for energy-efficient operation. This feature not only reduces power consumption but also extends the lifespan of the display.
7. Integrated Software Functions:
   • The SIEMENS 6AV2123-2GB03-0AX0 includes integrated software functions such as alarm logging, recipe management, and graphical functions. These features enhance the panel’s capabilities, making it suitable for a wide range of applications.
8. Configurable from WinCC Basic V13/STEP 7 Basic V13:
   • This panel can be configured using WinCC Basic V13 or STEP 7 Basic V13. It also contains open-source software provided free of charge, facilitating easy setup and customization.

Advantages of Choosing SIEMENS 6AV2123-2GB03-0AX0

1. Cost-Effective Solution:
   • The SIEMENS 6AV2123-2GB03-0AX0 is designed for the cost-effective implementation of simple visualization tasks, making it an ideal entry-level device for machine-level applications.
2. Versatile Connectivity:
   • With its PROFINET and USB interfaces, this panel offers versatile connectivity options, enabling seamless integration with various industrial systems and devices.
3. Durable and Reliable:
   • The IP65 protection rating ensures that the panel can withstand harsh industrial environments, providing durability and reliability.
4. Enhanced Usability:
   • The combination of key/touch operation, high-resolution display, and intuitive user interface ensures enhanced usability, allowing operators to efficiently monitor and control processes.
5. Energy Efficiency:
   • The dimmable high-contrast screen reduces energy consumption, making the panel an eco-friendly choice for industrial applications.

Application Scenarios

1. Simple Machine-Level Visualization:
   • Ideal for simple visualization tasks, the SIEMENS 6AV2123-2GB03-0AX0 provides clear process representation and easy control of machine operations.
2. Industrial Automation:
   • This panel is perfect for monitoring and controlling various industrial automation processes, ensuring efficient operation and integration with other industrial systems.
3. Harsh Environments:
   • With its IP65 protection rating, the panel can be used in harsh environments, providing reliable performance even under challenging conditions.

6AV2123-2GB03-0AX0 Specifications
